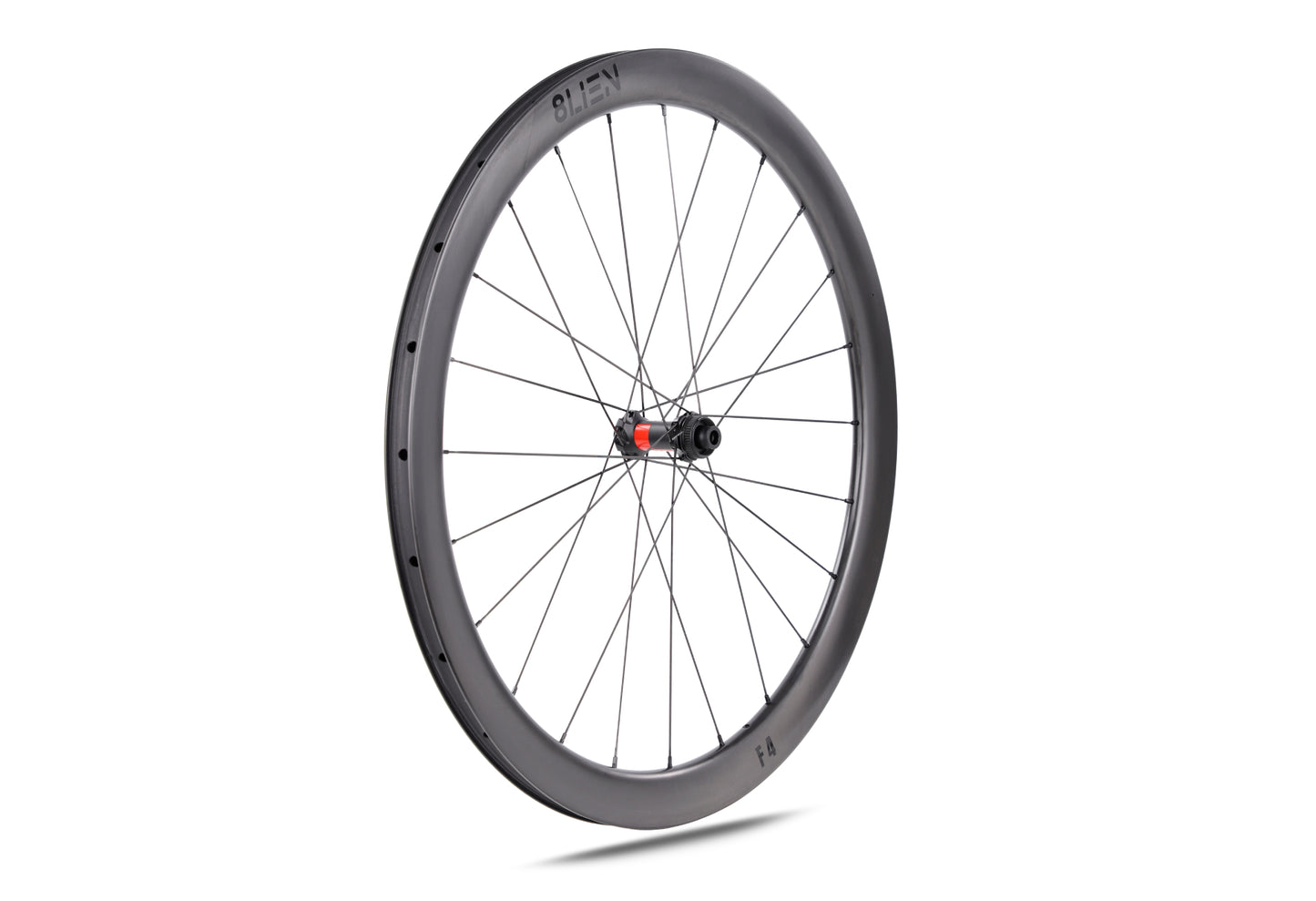

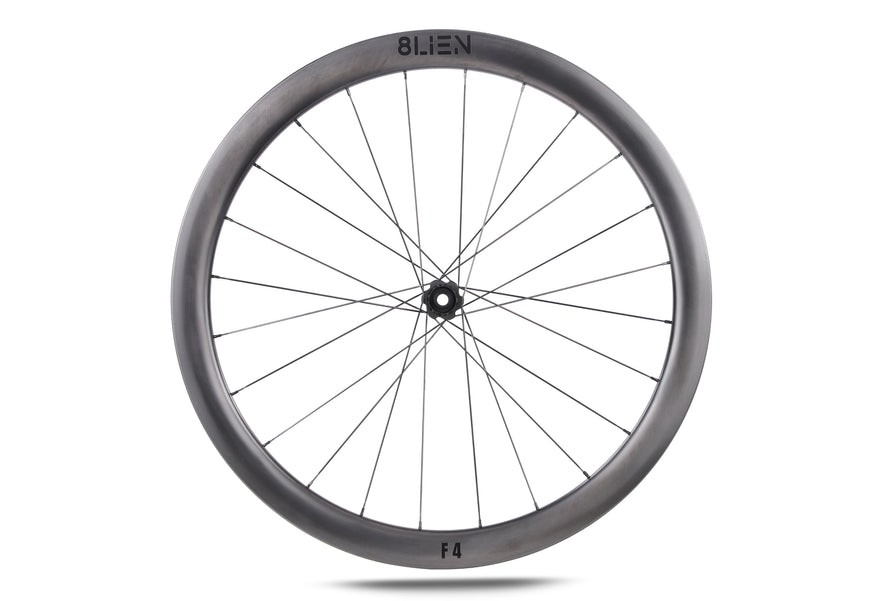

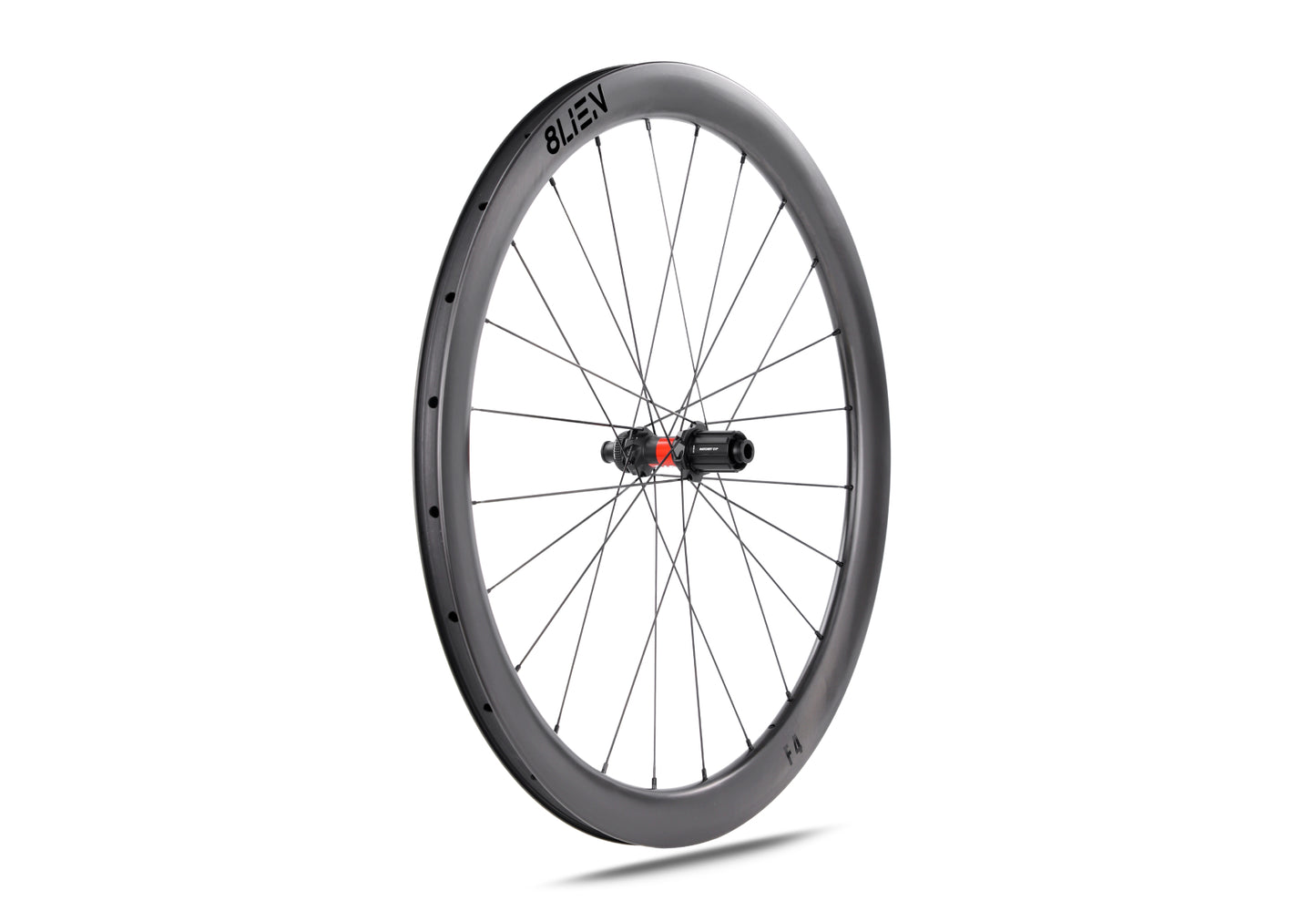

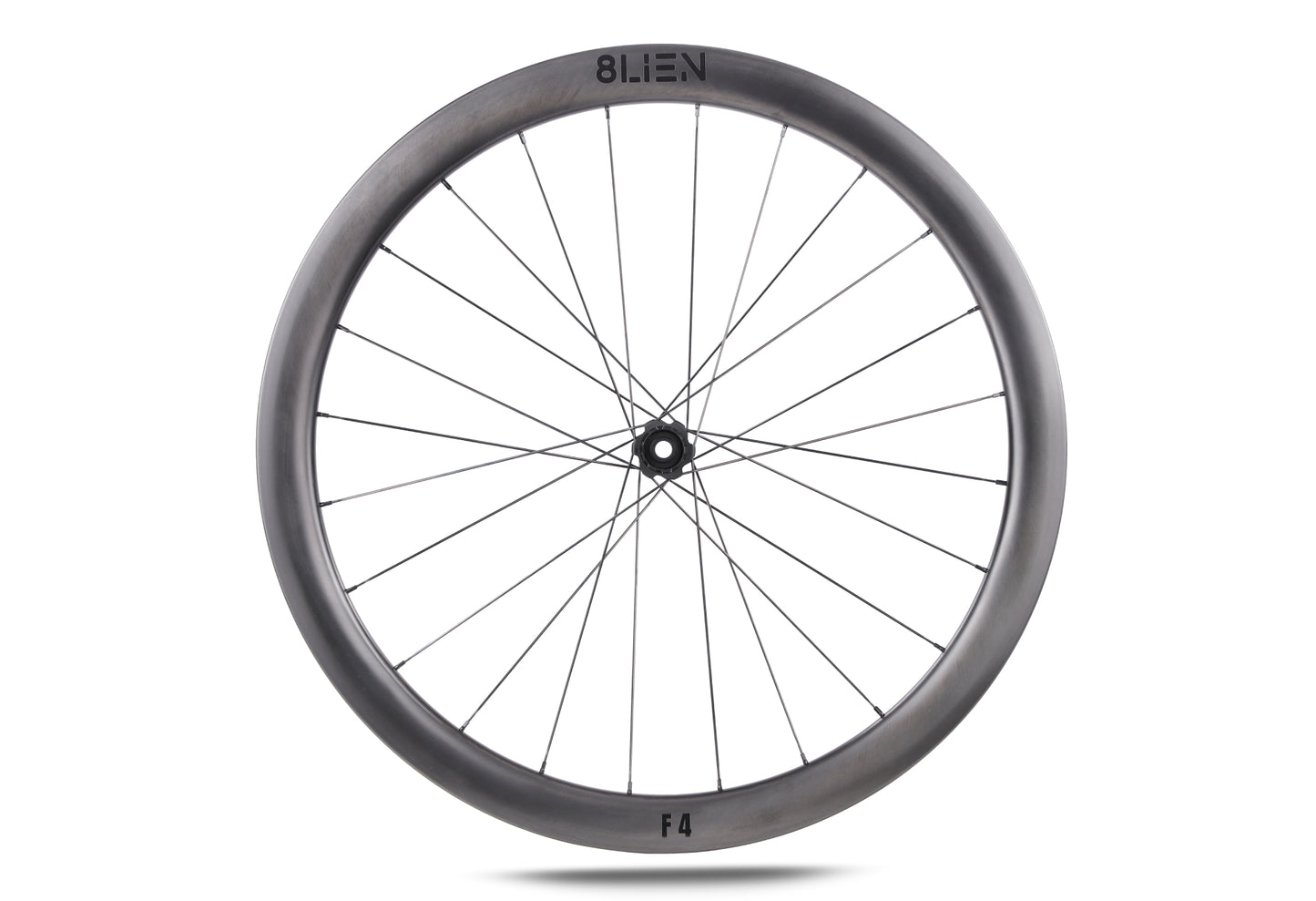

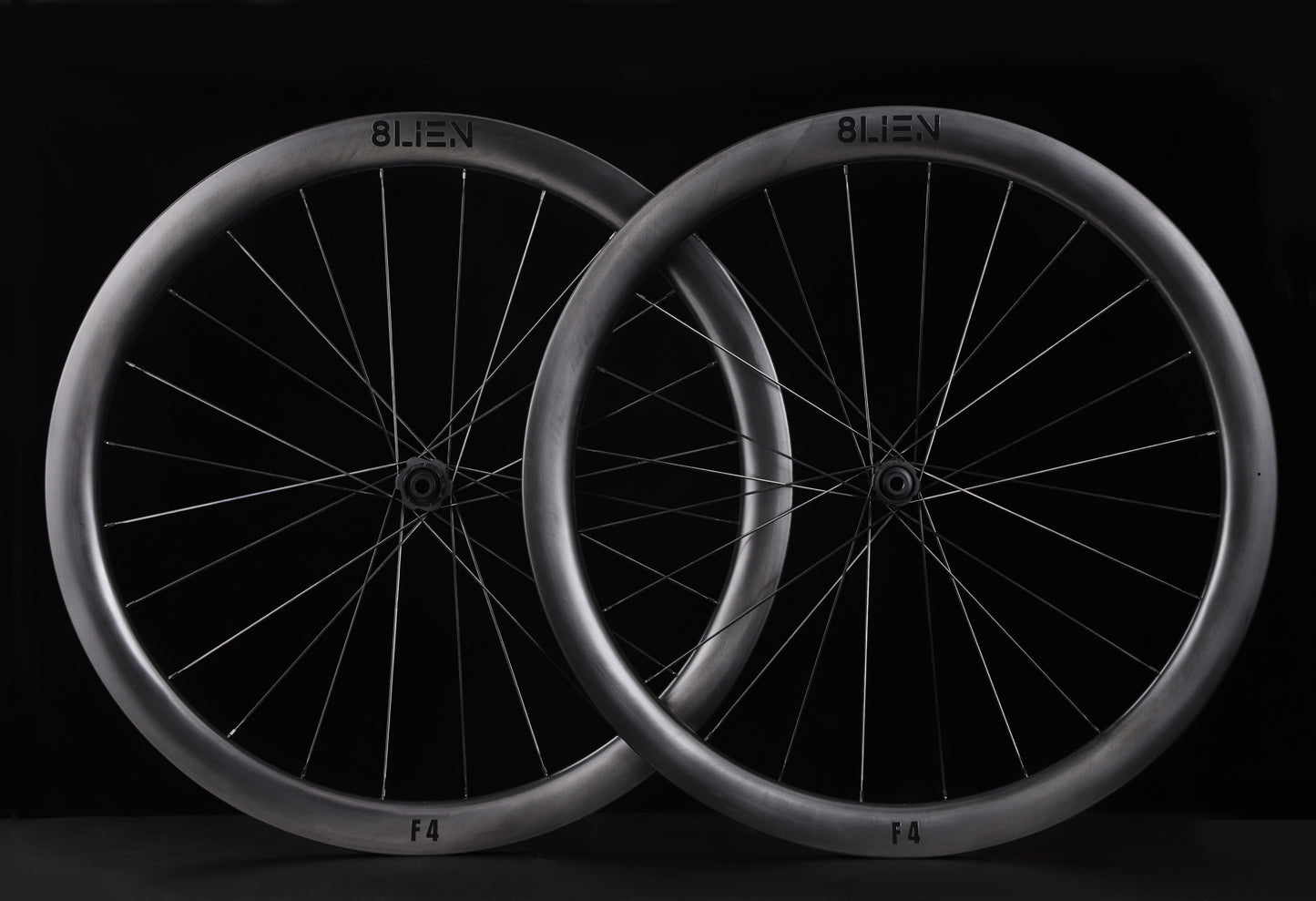

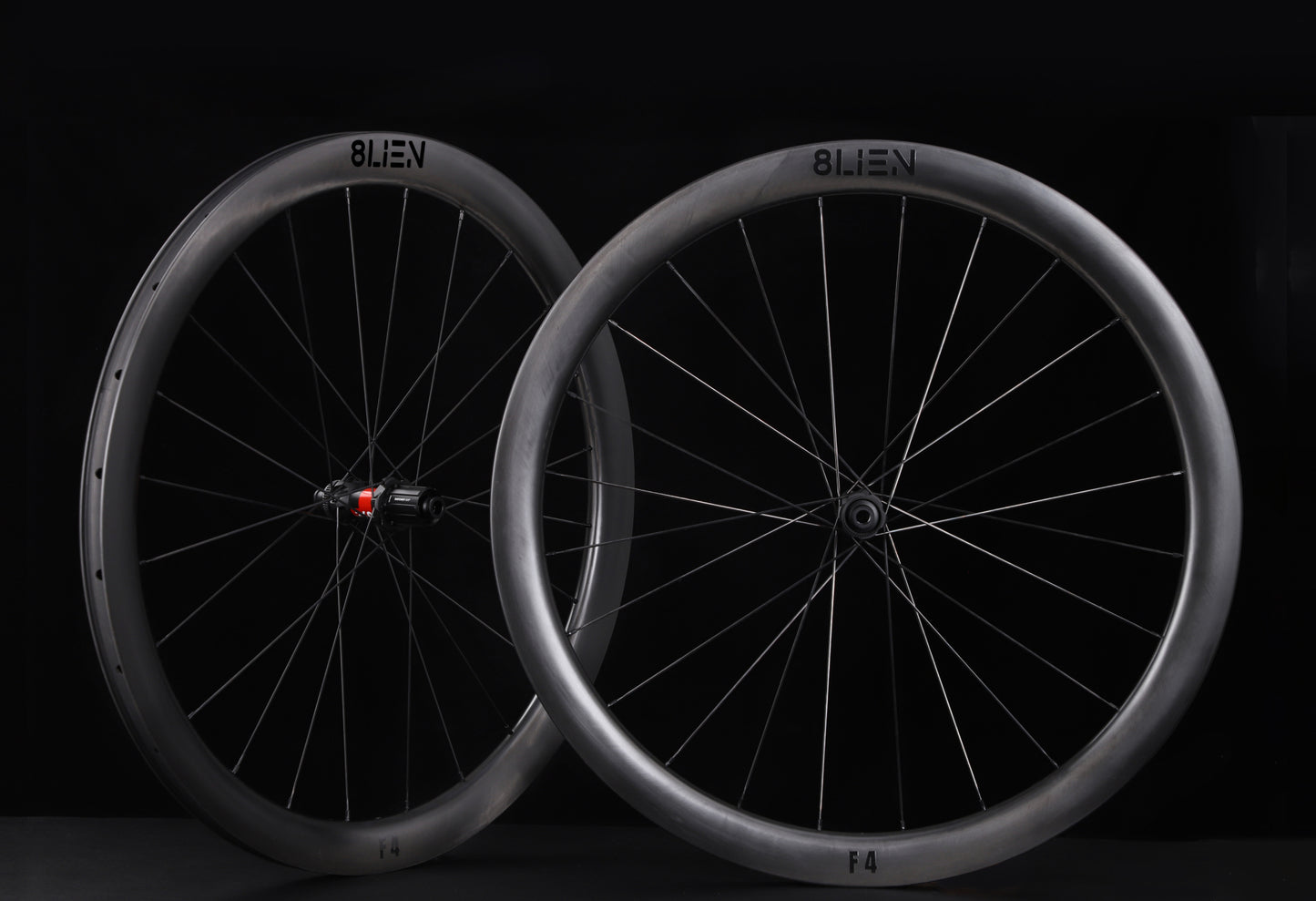

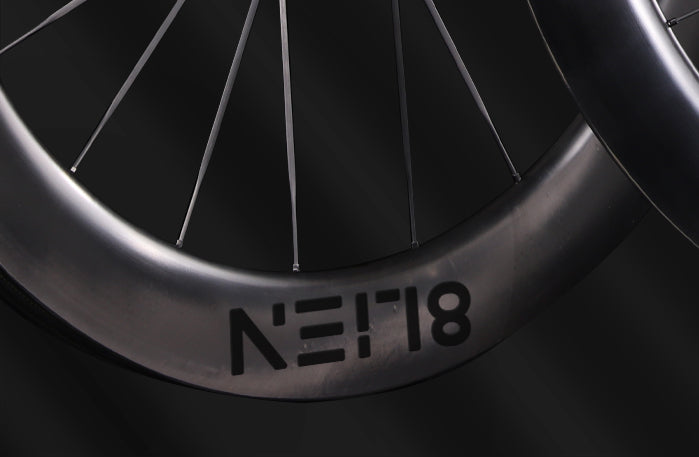

F4 Disc Carbon Wheelset

Name: F4 Disc Carbon Wheelset
Brand: 8lienbike
Price: 1399.0 USD
Availability: InStock

1360g | Outstanding All-Rounder

$1,399.00

Sale Sold Out

FREE SHIPPING WORLDWIDE

Freehub Shimano 10/11/12S Sram XDR Campagnolo N3W

Axle QR/QR 12*100/12*142

Translation missing: en.products.product.product_variants

Quantity

Free International Shipping

Free shipping to most countries, for more info check shipping policy.

Import & Duty Taxes inc.

We offer import duty prepaid service to most of the EU countries. For other countries, please contact 8LIEN upon receiving customs notice.

3-Year Warranty

For warranty, learn more.

PRODUCT DETAILS

Wheel Size:	700C
Outer Rim Width:	28mm
Inner Rim Width:	21mm
Rim Finish:	Coating Free
Optimized tire size:	25mm-40mm
Minimum labeled tire size:	25mm
Tire Fit:	Clincher and Tubeless Tires
Tire Pressure:	Clincher Tire: < 125 psi (8.6bar) \| Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:	120KG

BUILD SPECS

Hubs:	DT 240 \| Ratchet 36T
Spokes:	Sapim CX Ray
Spacing:	Front: 12x100 \| Rear: 12x142
Brake Type:	Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth:	Front: 45mm , Rear: 45mm
Internal Width:	21mm
External Width	28mm
Spoke Count	24H/24H

WEIGHT

1360+/-30g

	Super Light Ultra Carbon T800 For this new F serial wheels, we use Ultra Toray Carbon Fiber T800.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
	Reinforcement Layer-up With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.

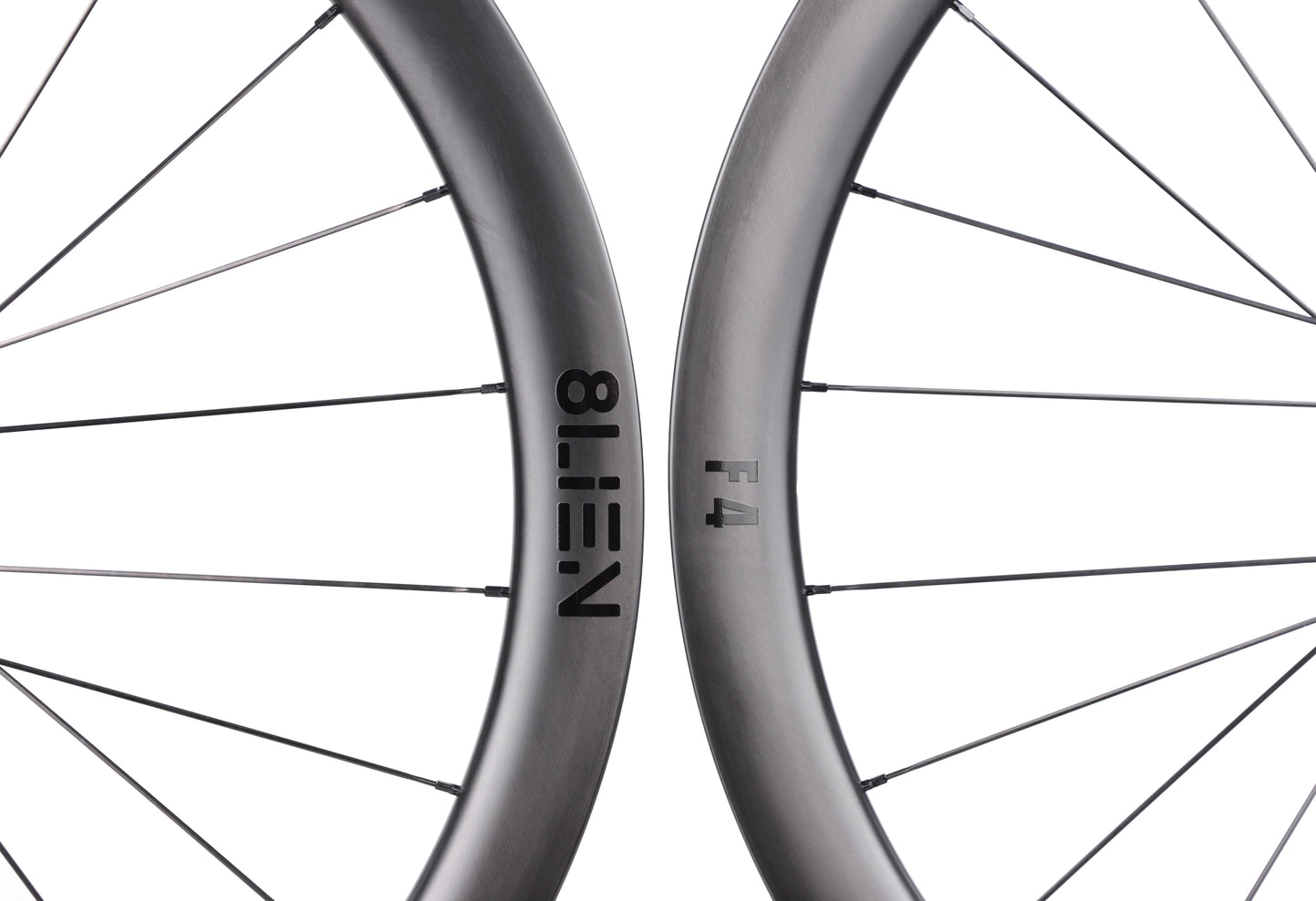

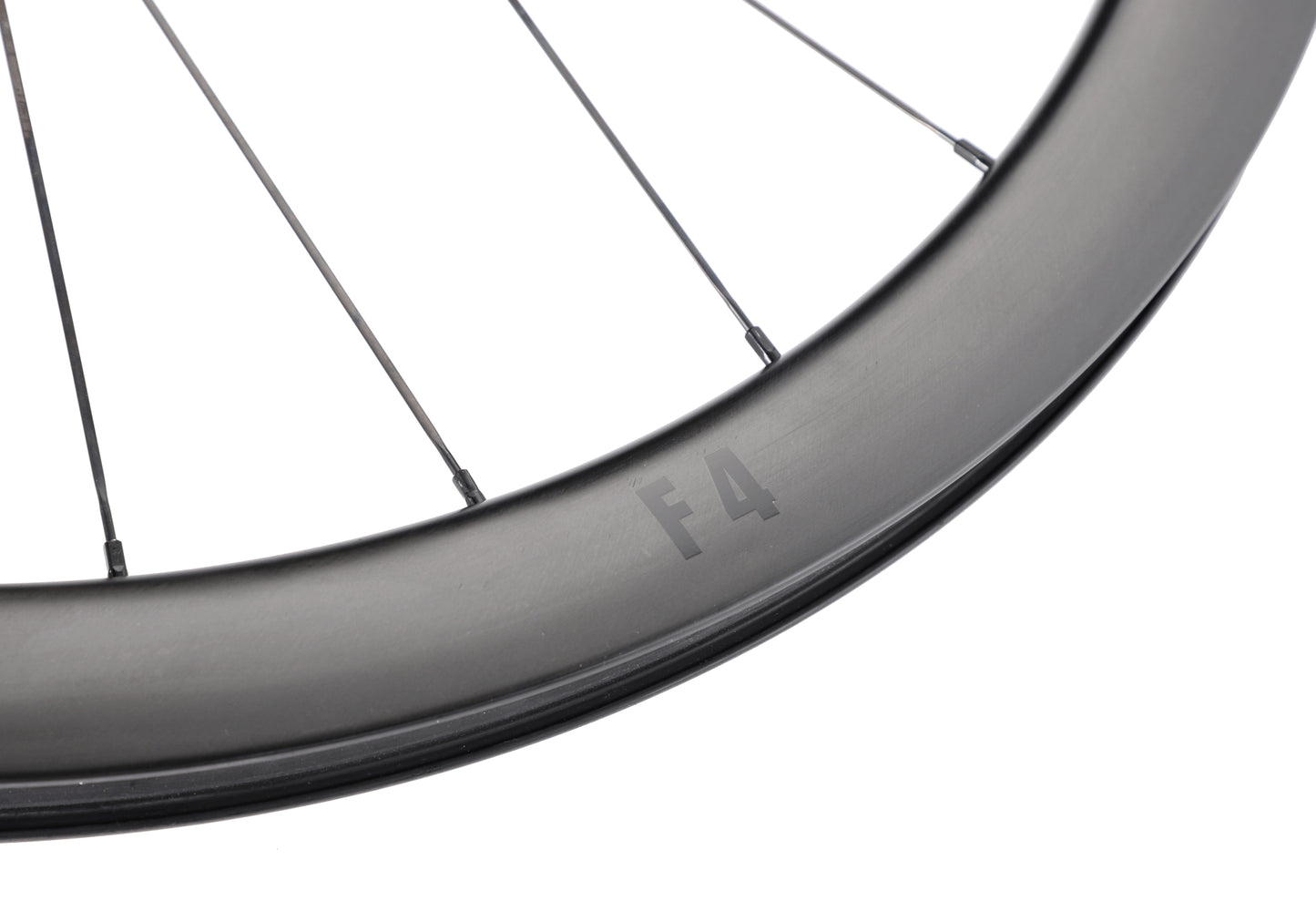

	Coating Free \| Scratch Resistance Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
	Tubeless Compatible Technology The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
	Strict Quality Control System 1. Vertical Stiffness Test: 50kgf PASS 2. Lateral Stiffness Test: 40kgf 3. Vertical Impact Test: PASS (All test points pass 300kgf) 4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf) 5.Tire Installation Test: Pass (Clincher tire 150psi)
	Stiffer Bearing Stance Since the bearing is integrated in the threaded ring, it means a stiffer bearing stance due to the increase in distance between the drive shell bearings. Superior Reliability The ratchets fully engage to create a large contact surface and small point loads, resulting in superior reliability.
	Ratchet System F Series are born for cyclists with extreme ambitions. These wheels are built with DT Swiss 240 EXP hubs which provide the best balance between engagement, reliability, and low system weight.
	Ease of Maintenance Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
	Sapim CX-Ray spokes We don’t save money on cheap spokes! By utilizing the Sapim CX Ray Spokes & Sapim Secure lock Patented square head nipples,our F Series wheelset strikes the perfect balance between aerodynamics & longevity. Sapim CX-Ray spokes are considered by many to be the best performing bladed spokes on the market.They combine featherweight and maximum fatigue resistance and give the wheels exceptional dynamic behavior. Even downhill racers use Sapim CX Ray spokes because of their strength and durability.

We value our customers and strive for excellent customer satisfaction. With every purchase of a new 8LIEN wheelset or rims, you are automatically enrolled in our worry-free warranty program. This program is designed to provide peace of mind and coverage for any unexpected issues you may encounter with your wheels or rims.

WORRY-FREE WARRANTY PROGRAM

We understand the frustration of dealing with warranty issues, and we are dedicated to supporting our customers every step of the way. Our experienced warranty team is ready to handle all claims promptly and efficiently, ensuring that cases are resolved as quickly as possible. All 8LIEN wheelsets come with a comprehensive 3-year warranty against material or workmanship defects, starting from the date of receipt of your wheels.

Areas Not Covered by Warranty

Improper assembly or maintenance.
Installation of parts, accessories, or tires not originally intended for or compatible with the rims/wheels.
Vulnerable parts such as bearings, valves, quick releases, thru axles, and brake pads.
Damage or failures due to a crash, accidental damage, product misuse, heat damage, non-compliance with manufacturer specifications, or other external factors.
Exceeding the wheel’s weight limit or tire pressure, and riding in unsuitable terrain or conditions.

Within 60 days of product receipt, 8LIEN covers shipping costs for manufacturing defects. After this period, the customer assumes shipping costs and possible customs duties. Also, our warranty program is non-transferable and applies solely to the initial purchaser of the wheelset. For warranty claims, please contact us at service@8lienbike.com.

CRASH REPLACEMENT POLICY

We understand that accidents can happen unexpectedly, and we're here to support you through those challenging moments. All 8LIEN carbon wheels enjoy a free lifetime crash replacement. In the unfortunate event that your carbon wheels are damaged due to a crash, we offer discount on all replacement parts. Please note:

The shipping fee and possible customs duties under the Crash Replacement Policy is borne by the customer.
This policy only covers structural damage that affects the safety of the product. It does not cover cosmetic damage.

Please reach out to us at service@8lienbike.com for crash replacement claims.

At 8LIEN, we prioritize your riding experience and strive to provide comprehensive support whenever you need it most!
