Wide Version Disc Carbon Wheelset (25MM Inner) Wide Version Disc Carbon Wheelset (25MM Inner)

8lienbike

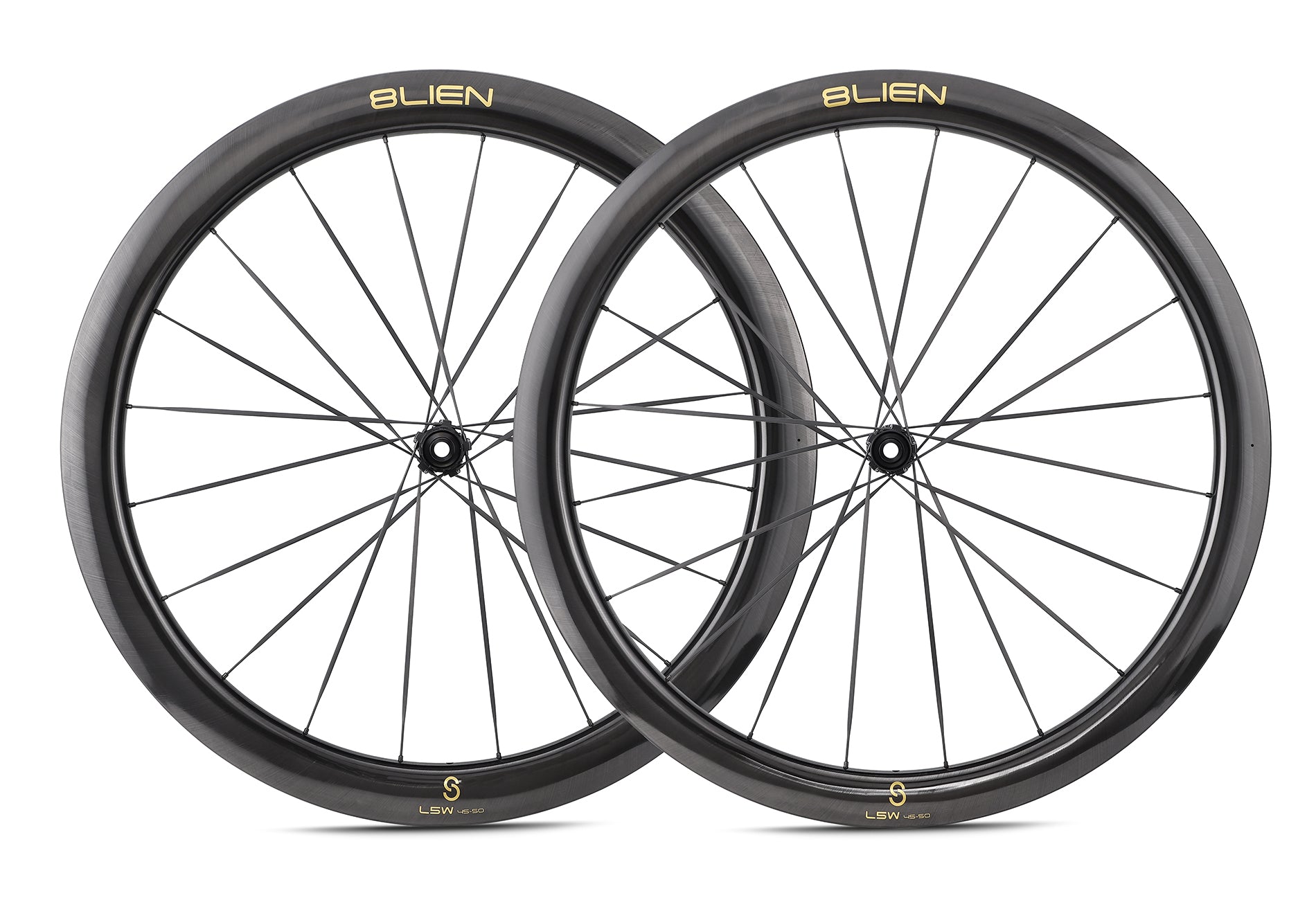

Wide Version Disc Carbon Wheelset (25MM Inner)

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 34mm
Inner Rim Width: 25mm
Rim Finish:
Coating Free
Optimized tire size: 28mm-48mm
Minimum labeled tire size: 28mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 110KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

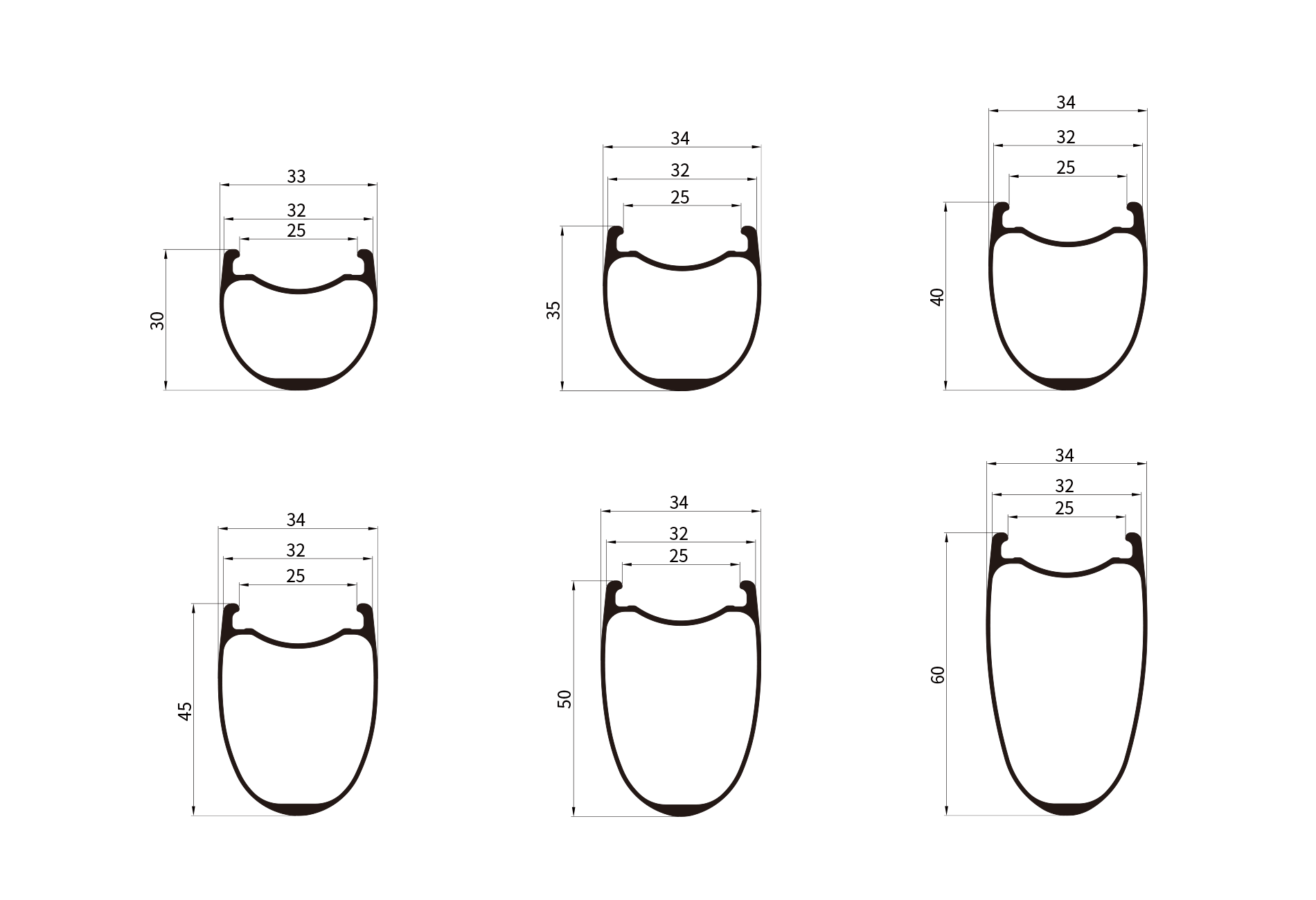

DIMENSIONS

Depth:

L3W: Front: 30mm , Rear: 35mm

L5W: Front: 45mm , Rear: 50mm

L6W: Front: 60mm , Rear: 60mm
Internal Width: 25mm
External Width 34mm
Spoke Count 20H/20H

WEIGHT

L3W: 1130+/-30g

L5W: 1220+/-30g

L6W: 1290+/-30g

F50, R60: 1250+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,329.00
Quick View
Compare
Wide Version Disc Carbon Wheelset (25MM Inner) Wide Version Disc Carbon Wheelset (25MM Inner)

8lienbike

Wide Version Disc Carbon Wheelset (25MM Inner)

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 34mm
Inner Rim Width: 25mm
Rim Finish:
Coating Free
Optimized tire size: 28mm-48mm
Minimum labeled tire size: 28mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 110KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth:

L3W: Front: 30mm , Rear: 35mm

L5W: Front: 45mm , Rear: 50mm

L6W: Front: 60mm , Rear: 60mm
Internal Width: 25mm
External Width 34mm
Spoke Count 20H/20H

WEIGHT

L3W: 1130+/-30g

L5W: 1220+/-30g

L6W: 1290+/-30g

F50, R60: 1250+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,329.00
Quick View
Compare
L5 Disc Carbon Wheelset L5 Disc Carbon Wheelset

8lienbike

L5 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 100KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 45mm , Rear: 50mm
Internal Width: 21mm
External Width 28mm
Spoke Count 20H/20H

WEIGHT

1180+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Coating free rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Coating free rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service​.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,299.00
Quick View
Compare
L5 Disc Carbon Wheelset L5 Disc Carbon Wheelset

8lienbike

L5 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 100KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 45mm , Rear: 50mm
Internal Width: 21mm
External Width 28mm
Spoke Count 20H/20H

WEIGHT

1180+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Coating free rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Coating free rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service​.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,299.00
Quick View
Compare
L4 Disc Carbon Wheelset L4 Disc Carbon Wheelset

8lienbike

L4 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 100KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 40mm , Rear: 45mm
Internal Width: 21mm
External Width 28mm
Spoke Count 20H/20H

WEIGHT

1150+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Coating free rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Coating free rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service​.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,299.00
Quick View
Compare
L4 Disc Carbon Wheelset L4 Disc Carbon Wheelset

8lienbike

L4 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 100KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 40mm , Rear: 45mm
Internal Width: 21mm
External Width 28mm
Spoke Count 20H/20H

WEIGHT

1150+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Coating free rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Coating free rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service​.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,299.00
Quick View
Compare
L6 Disc Carbon Wheelset L6 Disc Carbon Wheelset

8lienbike

L6 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 100KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 60mm , Rear: 65mm
Internal Width: 21mm
External Width 28mm
Spoke Count 20H/20H

WEIGHT

1300+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service​.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,299.00
Quick View
Compare
L6 Disc Carbon Wheelset L6 Disc Carbon Wheelset

8lienbike

L6 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 100KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 60mm , Rear: 65mm
Internal Width: 21mm
External Width 28mm
Spoke Count 20H/20H

WEIGHT

1300+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service​.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,299.00
Quick View
Compare
L3 Disc Carbon Wheelset L3 Disc Carbon Wheelset

8lienbike

L3 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 95KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 30mm , Rear: 35mm
Internal Width: 21mm
External Width 28mm
Spoke Count 20H/20H

WEIGHT

1100+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service​.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,299.00
Quick View
Compare
L3 Disc Carbon Wheelset L3 Disc Carbon Wheelset

8lienbike

L3 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 95KG

BUILD SPECS

Hubs: R01 Hub | Ratchet 36T | S&S Ceramic Bearings
Spokes: Carbon Spoke(4.5mm) | 1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 30mm , Rear: 35mm
Internal Width: 21mm
External Width 28mm
Spoke Count 20H/20H

WEIGHT

1100+/-30g





Ultra Toray Carbon Fiber T1000



For the new L serial wheels, we use Ultra Toray Carbon Fiber T1000.It takes weight saving and strength to an entirely new level. Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
S&S Ceramic Bearing R01 Hubs



Durable, sealed ceramic bearings and reliable engagement mechanisms contribute to smoother rolling and better power transfer.
Ratchet System



The Ratchet System with 36T provide a larger surface area for engagement compared to traditional pawl systems, which translates to improved durability and more efficient power transfer. The ratchet system also simplifies maintenance and reduces the number of parts, enhancing reliability and ease of service​.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Carbon Spoke Aero Design



The lightweight Carbon Aero spokes provide high lateral stiffness resulting in increased efficiency when accelerating and climbing. The optimized aerodynamic shape of the spoke reduces aerodynamic drag.
$1,299.00
Quick View
Compare
F5 Disc Carbon Wheelset F5 Disc Carbon Wheelset

8lienbike

F5 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 120KG

BUILD SPECS

Hubs: DT 240 | Ratchet 36T
Spokes: Sapim CX Ray
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 50mm , Rear: 50mm
Internal Width: 21mm
External Width 28mm
Spoke Count 24H/24H

WEIGHT

1380+/-30g





Super Light Ultra Carbon T800



For this new F serial wheels, we use Ultra Toray Carbon Fiber T800.It takes weight saving and strength to an entirely new level.  Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
Stiffer Bearing Stance



Since the bearing is integrated in the threaded ring, it means a stiffer bearing stance due to the increase in distance between the drive shell bearings.



Superior Reliability



The ratchets fully engage to create a large contact surface and small point loads, resulting in superior reliability.
Ratchet System



F Series are born for cyclists with extreme ambitions.
These wheels are built with DT Swiss 240 EXP hubs which provide the best balance between engagement, reliability, and low system weight.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Sapim CX-Ray spokes



We don’t save money on cheap spokes! By utilizing the Sapim CX Ray Spokes & Sapim Secure lock Patented square head nipples,our F Series wheelset strikes the perfect balance between aerodynamics & longevity.

Sapim CX-Ray spokes are considered by many to be the best performing bladed spokes on the market.They combine featherweight and maximum fatigue resistance and give the wheels exceptional dynamic behavior.

Even downhill racers use Sapim CX Ray spokes because of their strength and durability.
$1,399.00
Quick View
Compare
F5 Disc Carbon Wheelset F5 Disc Carbon Wheelset

8lienbike

F5 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 120KG

BUILD SPECS

Hubs: DT 240 | Ratchet 36T
Spokes: Sapim CX Ray
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 50mm , Rear: 50mm
Internal Width: 21mm
External Width 28mm
Spoke Count 24H/24H

WEIGHT

1380+/-30g





Super Light Ultra Carbon T800



For this new F serial wheels, we use Ultra Toray Carbon Fiber T800.It takes weight saving and strength to an entirely new level.  Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
Stiffer Bearing Stance



Since the bearing is integrated in the threaded ring, it means a stiffer bearing stance due to the increase in distance between the drive shell bearings.



Superior Reliability



The ratchets fully engage to create a large contact surface and small point loads, resulting in superior reliability.
Ratchet System



F Series are born for cyclists with extreme ambitions.
These wheels are built with DT Swiss 240 EXP hubs which provide the best balance between engagement, reliability, and low system weight.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Sapim CX-Ray spokes



We don’t save money on cheap spokes! By utilizing the Sapim CX Ray Spokes & Sapim Secure lock Patented square head nipples,our F Series wheelset strikes the perfect balance between aerodynamics & longevity.

Sapim CX-Ray spokes are considered by many to be the best performing bladed spokes on the market.They combine featherweight and maximum fatigue resistance and give the wheels exceptional dynamic behavior.

Even downhill racers use Sapim CX Ray spokes because of their strength and durability.
$1,399.00
Quick View
Compare

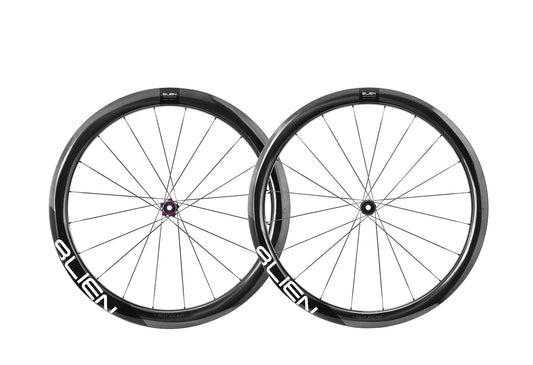

2026 AETHER Series - Ultra Light(Pre-Order) 2026 AETHER Series - Ultra Light(Pre-Order)

8lienbike

2026 AETHER Series - Ultra Light(Pre-Order)

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 34mm
Inner Rim Width: 25mm(Hooked)
Rim Finish:
Coating Free
Optimized tire size: 28mm-48mm
Minimum labeled tire size: 28mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 110KG

BUILD SPECS

Hubs: Aether Hubs（R02） | Ratchet 45T | TPI Ceramic Bearings
Spokes: Carbon Spokes (Gen 4) | T-Head |1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth:

Aether 3: Front: 30mm , Rear: 35mm

Aether 4: Front: 40mm , Rear: 45mm

Aether 5: Front: 45mm , Rear: 50mm

Aether 6: Front: 50mm , Rear: 60mm
Internal Width: 25mm(Hooked)
External Width 34mm
Spoke Count 20H/20H

WEIGHT

Aether 3: 980+/-30g

Aether 4: 1020+/-30g

Aether 5: 1040+/-30g

Aether 6: 1110+/-30g





Engineered Synergy: T1100 & M40X Carbon Fusion



We believe true innovation comes from understanding materials at their core. The AETHER series wheelset uses a calculated fusion of T1100 and M40X carbon fibers—not simple layering, but a performance-driven composite. This scientific ply design delivers the perfect balance of weight, stiffness, strength, and comfort.

T1100 provides exceptional toughness and durability, ensuring stability across all road conditions. M40X reinforces critical areas like spoke holes and rim walls, boosting rigidity and power transfer for sharp, efficient acceleration and confident cornering.

This synergy creates wheelsets that are ultralight without compromise. At 8LIEN, we’re not just building wheels—we’re engineering pure, reliable performance.
25mm Internal Width: The Efficiency & Comfort Game-Changer



A wider rim better "supports" wider tires, allowing you to confidently run lower tire pressure.

Lower tire pressure means the tire can absorb more vibrations, providing a more comfortable ride.

The AETHER Series features a 25mm internal width that elevates comfort on uneven terrain, boosts efficiency during intense efforts, and enhances stability in corners and descents—creating a genuine “game-changer” riding experience.
37 Steps to Flawless Hubs



The AETHER Series is equipped with hubs made from aerospace-grade aluminum, featuring a redesigned shell that achieves exceptional strength with minimal weight. Every hub goes through 37 meticulous inspection steps and high-precision machining, guaranteeing flawless tolerances and outstanding long-term durability.
Engineered Engagement, Redefined



The new 45T ratchet delivers an 8-degree engagement angle with enhanced durability and a larger engagement surface. Each ratchet undergoes a vacuum-coating process, where a thin anti-friction layer is applied in a controlled environment. This advanced treatment improves wear resistance, ensures smoother hub operation, and significantly boosts long-term durability.
Wave-Form Spring


Inside the hub, a cylindrical wave-form spring applies more uniform pressure to the ratchet, delivering smoother and more consistent power transfer.
TPI Ceramic Bearings



AETHER Series are equipped with premium TPI ceramic bearings, delivering a noticeable boost in speed, efficiency, and ride quality. The ultra-smooth ceramic balls reduce friction for faster acceleration, while the heat-treated bearing races ensure long-lasting durability and stability under high load.

The result?
Lighter rolling, improved comfort, and unmatched performance — fully unlocking the potential of your 8LIEN wheels on climbs, sprints, and long endurance rides.
The Next-Gen Carbon Spoke



Ultra-lightweight aero carbon spokes—just 2g each—deliver exceptional tensile strength and significantly reduce lateral flex, resulting in more efficient acceleration and climbing performance. Their purpose-designed aero profile provides class-leading aerodynamic efficiency and outstanding stability in changing wind conditions.

The T-shaped head design locks into the hub flange, preventing spoke twist during build, truing, and riding, ensuring more stable tension and power transfer.

8LIEN Laboratory Testing


All of our wheels, rims, spokes, and hubs have undergone the following tests and more:

UCI Vertical Impact Test (40 Joules)
8LIEN Standard Vertical Impact Test (90 Joules)
Lateral Stiffness of the Rim Test
Radial Stiffness of the Rim Test
Lateral Stiffness of the Wheel Test
Radial Stiffness of the Wheel Test
Lateral Runout of the Rim Test
Radial Runout of the Rim Test
Spoke Hole Maximum Pull-Through Test
Maximum Tire Pressure Test
10,000km Rough Surface Test
High Speed Stability Test
Spoke Longevity Test
Spoke High Tension Longevity Test
Spoke Stiffness Test
Max Spoke Tension Test
$1,799.00
Quick View
Compare

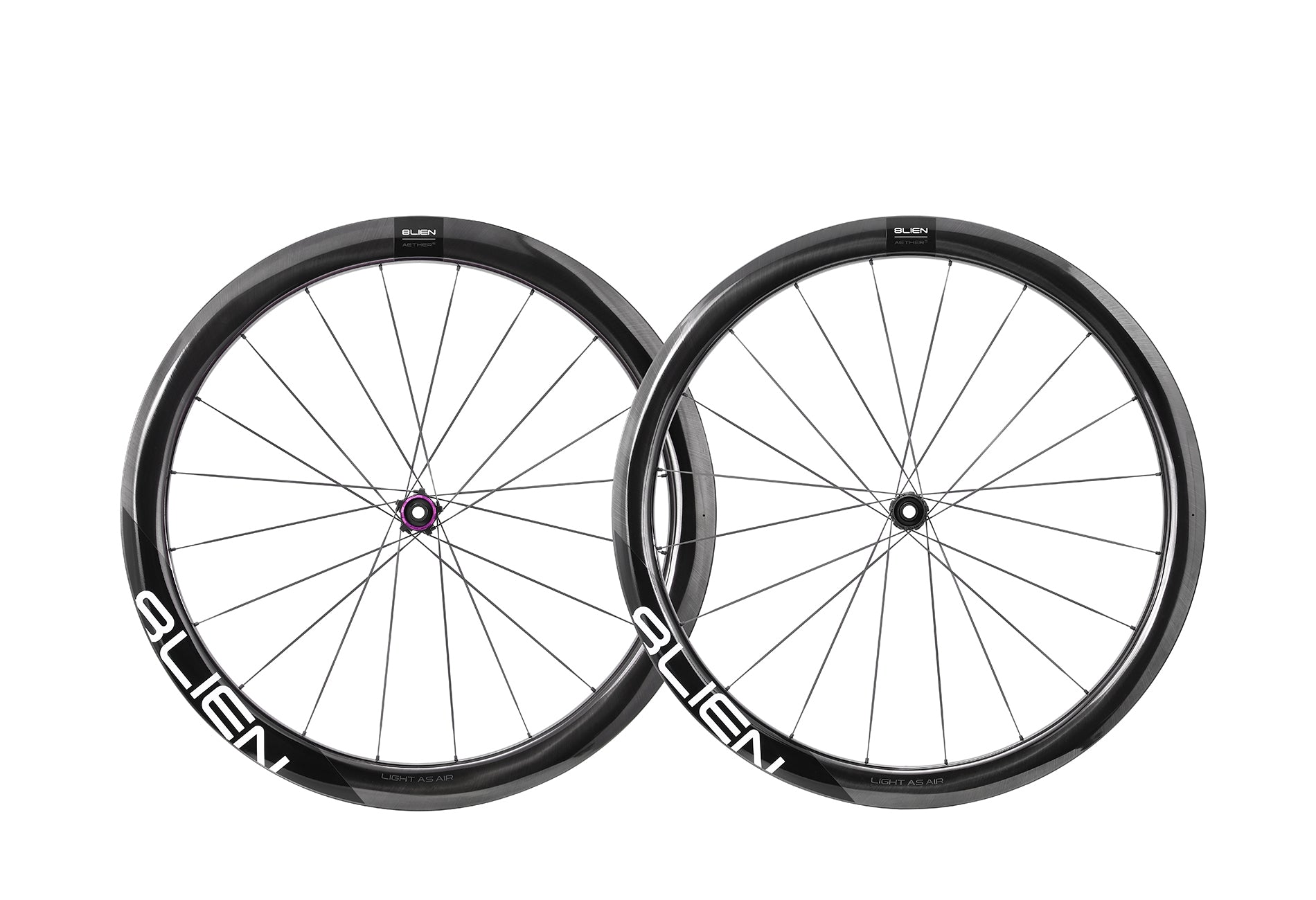

2026 AETHER Series - Ultra Light(Pre-Order) 2026 AETHER Series - Ultra Light(Pre-Order)

8lienbike

2026 AETHER Series - Ultra Light(Pre-Order)

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 34mm
Inner Rim Width: 25mm(Hooked)
Rim Finish:
Coating Free
Optimized tire size: 28mm-48mm
Minimum labeled tire size: 28mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 110KG

BUILD SPECS

Hubs: Aether Hubs（R02） | Ratchet 45T | TPI Ceramic Bearings
Spokes: Carbon Spokes (Gen 4) | T-Head |1:1 pattern
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth:

Aether 3: Front: 30mm , Rear: 35mm

Aether 4: Front: 40mm , Rear: 45mm

Aether 5: Front: 45mm , Rear: 50mm

Aether 6: Front: 50mm , Rear: 60mm
Internal Width: 25mm(Hooked)
External Width 34mm
Spoke Count 20H/20H

WEIGHT

Aether 3: 980+/-30g

Aether 4: 1020+/-30g

Aether 5: 1040+/-30g

Aether 6: 1110+/-30g





Engineered Synergy: T1100 & M40X Carbon Fusion



We believe true innovation comes from understanding materials at their core. The AETHER series wheelset uses a calculated fusion of T1100 and M40X carbon fibers—not simple layering, but a performance-driven composite. This scientific ply design delivers the perfect balance of weight, stiffness, strength, and comfort.

T1100 provides exceptional toughness and durability, ensuring stability across all road conditions. M40X reinforces critical areas like spoke holes and rim walls, boosting rigidity and power transfer for sharp, efficient acceleration and confident cornering.

This synergy creates wheelsets that are ultralight without compromise. At 8LIEN, we’re not just building wheels—we’re engineering pure, reliable performance.
25mm Internal Width: The Efficiency & Comfort Game-Changer



A wider rim better "supports" wider tires, allowing you to confidently run lower tire pressure.

Lower tire pressure means the tire can absorb more vibrations, providing a more comfortable ride.

The AETHER Series features a 25mm internal width that elevates comfort on uneven terrain, boosts efficiency during intense efforts, and enhances stability in corners and descents—creating a genuine “game-changer” riding experience.
37 Steps to Flawless Hubs



The AETHER Series is equipped with hubs made from aerospace-grade aluminum, featuring a redesigned shell that achieves exceptional strength with minimal weight. Every hub goes through 37 meticulous inspection steps and high-precision machining, guaranteeing flawless tolerances and outstanding long-term durability.
Engineered Engagement, Redefined



The new 45T ratchet delivers an 8-degree engagement angle with enhanced durability and a larger engagement surface. Each ratchet undergoes a vacuum-coating process, where a thin anti-friction layer is applied in a controlled environment. This advanced treatment improves wear resistance, ensures smoother hub operation, and significantly boosts long-term durability.
Wave-Form Spring


Inside the hub, a cylindrical wave-form spring applies more uniform pressure to the ratchet, delivering smoother and more consistent power transfer.
TPI Ceramic Bearings



AETHER Series are equipped with premium TPI ceramic bearings, delivering a noticeable boost in speed, efficiency, and ride quality. The ultra-smooth ceramic balls reduce friction for faster acceleration, while the heat-treated bearing races ensure long-lasting durability and stability under high load.

The result?
Lighter rolling, improved comfort, and unmatched performance — fully unlocking the potential of your 8LIEN wheels on climbs, sprints, and long endurance rides.
The Next-Gen Carbon Spoke



Ultra-lightweight aero carbon spokes—just 2g each—deliver exceptional tensile strength and significantly reduce lateral flex, resulting in more efficient acceleration and climbing performance. Their purpose-designed aero profile provides class-leading aerodynamic efficiency and outstanding stability in changing wind conditions.

The T-shaped head design locks into the hub flange, preventing spoke twist during build, truing, and riding, ensuring more stable tension and power transfer.

8LIEN Laboratory Testing


All of our wheels, rims, spokes, and hubs have undergone the following tests and more:

UCI Vertical Impact Test (40 Joules)
8LIEN Standard Vertical Impact Test (90 Joules)
Lateral Stiffness of the Rim Test
Radial Stiffness of the Rim Test
Lateral Stiffness of the Wheel Test
Radial Stiffness of the Wheel Test
Lateral Runout of the Rim Test
Radial Runout of the Rim Test
Spoke Hole Maximum Pull-Through Test
Maximum Tire Pressure Test
10,000km Rough Surface Test
High Speed Stability Test
Spoke Longevity Test
Spoke High Tension Longevity Test
Spoke Stiffness Test
Max Spoke Tension Test
$1,799.00
Quick View
Compare
F4 Disc Carbon Wheelset F4 Disc Carbon Wheelset

8lienbike

F4 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 120KG

BUILD SPECS

Hubs: DT 240 | Ratchet 36T
Spokes: Sapim CX Ray
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 45mm , Rear: 45mm
Internal Width: 21mm
External Width 28mm
Spoke Count 24H/24H

WEIGHT

1360+/-30g





Super Light Ultra Carbon T800



For this new F serial wheels, we use Ultra Toray Carbon Fiber T800.It takes weight saving and strength to an entirely new level.  Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
Stiffer Bearing Stance



Since the bearing is integrated in the threaded ring, it means a stiffer bearing stance due to the increase in distance between the drive shell bearings.



Superior Reliability



The ratchets fully engage to create a large contact surface and small point loads, resulting in superior reliability.
Ratchet System



F Series are born for cyclists with extreme ambitions.
These wheels are built with DT Swiss 240 EXP hubs which provide the best balance between engagement, reliability, and low system weight.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Sapim CX-Ray spokes



We don’t save money on cheap spokes! By utilizing the Sapim CX Ray Spokes & Sapim Secure lock Patented square head nipples,our F Series wheelset strikes the perfect balance between aerodynamics & longevity.

Sapim CX-Ray spokes are considered by many to be the best performing bladed spokes on the market.They combine featherweight and maximum fatigue resistance and give the wheels exceptional dynamic behavior.

Even downhill racers use Sapim CX Ray spokes because of their strength and durability.
$1,399.00
Quick View
Compare
F4 Disc Carbon Wheelset F4 Disc Carbon Wheelset

8lienbike

F4 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 120KG

BUILD SPECS

Hubs: DT 240 | Ratchet 36T
Spokes: Sapim CX Ray
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 45mm , Rear: 45mm
Internal Width: 21mm
External Width 28mm
Spoke Count 24H/24H

WEIGHT

1360+/-30g





Super Light Ultra Carbon T800



For this new F serial wheels, we use Ultra Toray Carbon Fiber T800.It takes weight saving and strength to an entirely new level.  Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
Stiffer Bearing Stance



Since the bearing is integrated in the threaded ring, it means a stiffer bearing stance due to the increase in distance between the drive shell bearings.



Superior Reliability



The ratchets fully engage to create a large contact surface and small point loads, resulting in superior reliability.
Ratchet System



F Series are born for cyclists with extreme ambitions.
These wheels are built with DT Swiss 240 EXP hubs which provide the best balance between engagement, reliability, and low system weight.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Sapim CX-Ray spokes



We don’t save money on cheap spokes! By utilizing the Sapim CX Ray Spokes & Sapim Secure lock Patented square head nipples,our F Series wheelset strikes the perfect balance between aerodynamics & longevity.

Sapim CX-Ray spokes are considered by many to be the best performing bladed spokes on the market.They combine featherweight and maximum fatigue resistance and give the wheels exceptional dynamic behavior.

Even downhill racers use Sapim CX Ray spokes because of their strength and durability.
$1,399.00
Quick View
Compare
F3 Disc Carbon Wheelset F3 Disc Carbon Wheelset

8lienbike

F3 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 120KG

BUILD SPECS

Hubs: DT 240 | Ratchet 36T
Spokes: Sapim CX Ray
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 35mm , Rear: 35mm
Internal Width: 21mm
External Width 28mm
Spoke Count 24H/24H

WEIGHT

1340+/-30g





Super Light Ultra Carbon T800



For this new F serial wheels, we use Ultra Toray Carbon Fiber T800.It takes weight saving and strength to an entirely new level.  Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
Stiffer Bearing Stance



Since the bearing is integrated in the threaded ring, it means a stiffer bearing stance due to the increase in distance between the drive shell bearings.



Superior Reliability



The ratchets fully engage to create a large contact surface and small point loads, resulting in superior reliability.
Ratchet System



F Series are born for cyclists with extreme ambitions.
These wheels are built with DT Swiss 240 EXP hubs which provide the best balance between engagement, reliability, and low system weight.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Sapim CX-Ray spokes



We don’t save money on cheap spokes! By utilizing the Sapim CX Ray Spokes & Sapim Secure lock Patented square head nipples,our F Series wheelset strikes the perfect balance between aerodynamics & longevity.

Sapim CX-Ray spokes are considered by many to be the best performing bladed spokes on the market.They combine featherweight and maximum fatigue resistance and give the wheels exceptional dynamic behavior.

Even downhill racers use Sapim CX Ray spokes because of their strength and durability.
$1,399.00
Quick View
Compare
F3 Disc Carbon Wheelset F3 Disc Carbon Wheelset

8lienbike

F3 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 28mm
Inner Rim Width: 21mm
Rim Finish:
Coating Free
Optimized tire size: 25mm-40mm
Minimum labeled tire size: 25mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 120KG

BUILD SPECS

Hubs: DT 240 | Ratchet 36T
Spokes: Sapim CX Ray
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 35mm , Rear: 35mm
Internal Width: 21mm
External Width 28mm
Spoke Count 24H/24H

WEIGHT

1340+/-30g





Super Light Ultra Carbon T800



For this new F serial wheels, we use Ultra Toray Carbon Fiber T800.It takes weight saving and strength to an entirely new level.  Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
Stiffer Bearing Stance



Since the bearing is integrated in the threaded ring, it means a stiffer bearing stance due to the increase in distance between the drive shell bearings.



Superior Reliability



The ratchets fully engage to create a large contact surface and small point loads, resulting in superior reliability.
Ratchet System



F Series are born for cyclists with extreme ambitions.
These wheels are built with DT Swiss 240 EXP hubs which provide the best balance between engagement, reliability, and low system weight.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Sapim CX-Ray spokes



We don’t save money on cheap spokes! By utilizing the Sapim CX Ray Spokes & Sapim Secure lock Patented square head nipples,our F Series wheelset strikes the perfect balance between aerodynamics & longevity.

Sapim CX-Ray spokes are considered by many to be the best performing bladed spokes on the market.They combine featherweight and maximum fatigue resistance and give the wheels exceptional dynamic behavior.

Even downhill racers use Sapim CX Ray spokes because of their strength and durability.
$1,399.00
Quick View
Compare
G4 Disc Carbon Wheelset G4 Disc Carbon Wheelset

8lienbike

G4 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 32mm
Inner Rim Width: 24mm
Rim Finish:
Coating Free
Optimized tire size: 28C-50C
Minimum labeled tire size: 28mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 120KG

BUILD SPECS

Hubs: DT 240 | Ratchet 36T
Spokes: Sapim CX Ray
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 40mm , Rear: 40mm
Internal Width: 24mm
External Width 32mm
Spoke Count 24H/24H

WEIGHT

1340+/-30g





Super Light Ultra Carbon T800



For this new F serial wheels, we use Ultra Toray Carbon Fiber T800.It takes weight saving and strength to an entirely new level.  Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
Stiffer Bearing Stance



Since the bearing is integrated in the threaded ring, it means a stiffer bearing stance due to the increase in distance between the drive shell bearings.



Superior Reliability



The ratchets fully engage to create a large contact surface and small point loads, resulting in superior reliability.
Ratchet System



F Series are born for cyclists with extreme ambitions.
These wheels are built with DT Swiss 240 EXP hubs which provide the best balance between engagement, reliability, and low system weight.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Sapim CX-Ray spokes



We don’t save money on cheap spokes! By utilizing the Sapim CX Ray Spokes & Sapim Secure lock Patented square head nipples,our F Series wheelset strikes the perfect balance between aerodynamics & longevity.

Sapim CX-Ray spokes are considered by many to be the best performing bladed spokes on the market.They combine featherweight and maximum fatigue resistance and give the wheels exceptional dynamic behavior.

Even downhill racers use Sapim CX Ray spokes because of their strength and durability.
$1,399.00
Quick View
Compare
G4 Disc Carbon Wheelset G4 Disc Carbon Wheelset

8lienbike

G4 Disc Carbon Wheelset

PRODUCT DETAILS

Wheel Size: 700C
Outer Rim Width: 32mm
Inner Rim Width: 24mm
Rim Finish:
Coating Free
Optimized tire size: 28C-50C
Minimum labeled tire size: 28mm

Tire Fit:

 Clincher and Tubeless Tires

Tire Pressure:

Clincher Tire: < 125 psi (8.6bar) | Tubeless Tire: < 90 psi (6.2bar)
Rider Weight Limit:
 120KG

BUILD SPECS

Hubs: DT 240 | Ratchet 36T
Spokes: Sapim CX Ray
Spacing: Front: 12x100 | Rear: 12x142
Brake Type: Disc Brake Centerlock (lockrings not included)

DIMENSIONS

Depth: Front: 40mm , Rear: 40mm
Internal Width: 24mm
External Width 32mm
Spoke Count 24H/24H

WEIGHT

1340+/-30g





Super Light Ultra Carbon T800



For this new F serial wheels, we use Ultra Toray Carbon Fiber T800.It takes weight saving and strength to an entirely new level.  Light weight yet robust and stiff.
Reinforcement Layer-up



With our reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.
Coating Free | Scratch Resistance



Paintless Rims come out of the molds as a finished product. Traditionally, rims are wet-sanded to remove imperfections like excess resin and then sprayed with a clear coat. Paintless rims come with a factory finish and the outer carbon layer is never disturbed after the curing cycle is completed which contributes to the hardest wearing and finish we have ever produced.
Tubeless Compatible Technology



The unique geometry of our Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.
Strict Quality Control System



1. Vertical Stiffness Test: 50kgf PASS



2. Lateral Stiffness Test: 20kgf (Deformation 3.5mm)



3. Vertical Impact Test: PASS (All test points pass 300kgf)



4. Spoke Holes Ultimate Strength Test: PASS (All test blocks pass 300kgf)



5.Tire Installation Test: Pass (Clincher tire 150psi)
Stiffer Bearing Stance



Since the bearing is integrated in the threaded ring, it means a stiffer bearing stance due to the increase in distance between the drive shell bearings.



Superior Reliability



The ratchets fully engage to create a large contact surface and small point loads, resulting in superior reliability.
Ratchet System



F Series are born for cyclists with extreme ambitions.
These wheels are built with DT Swiss 240 EXP hubs which provide the best balance between engagement, reliability, and low system weight.
Ease of Maintenance



Our R01 hubs are designed with ease of maintenance in mind. The tool-free design of many models makes it straightforward to perform routine maintenance and servicing, which is a significant advantage for both amateur and professional cyclists.
Sapim CX-Ray spokes



We don’t save money on cheap spokes! By utilizing the Sapim CX Ray Spokes & Sapim Secure lock Patented square head nipples,our F Series wheelset strikes the perfect balance between aerodynamics & longevity.

Sapim CX-Ray spokes are considered by many to be the best performing bladed spokes on the market.They combine featherweight and maximum fatigue resistance and give the wheels exceptional dynamic behavior.

Even downhill racers use Sapim CX Ray spokes because of their strength and durability.
$1,399.00
Quick View
Compare
